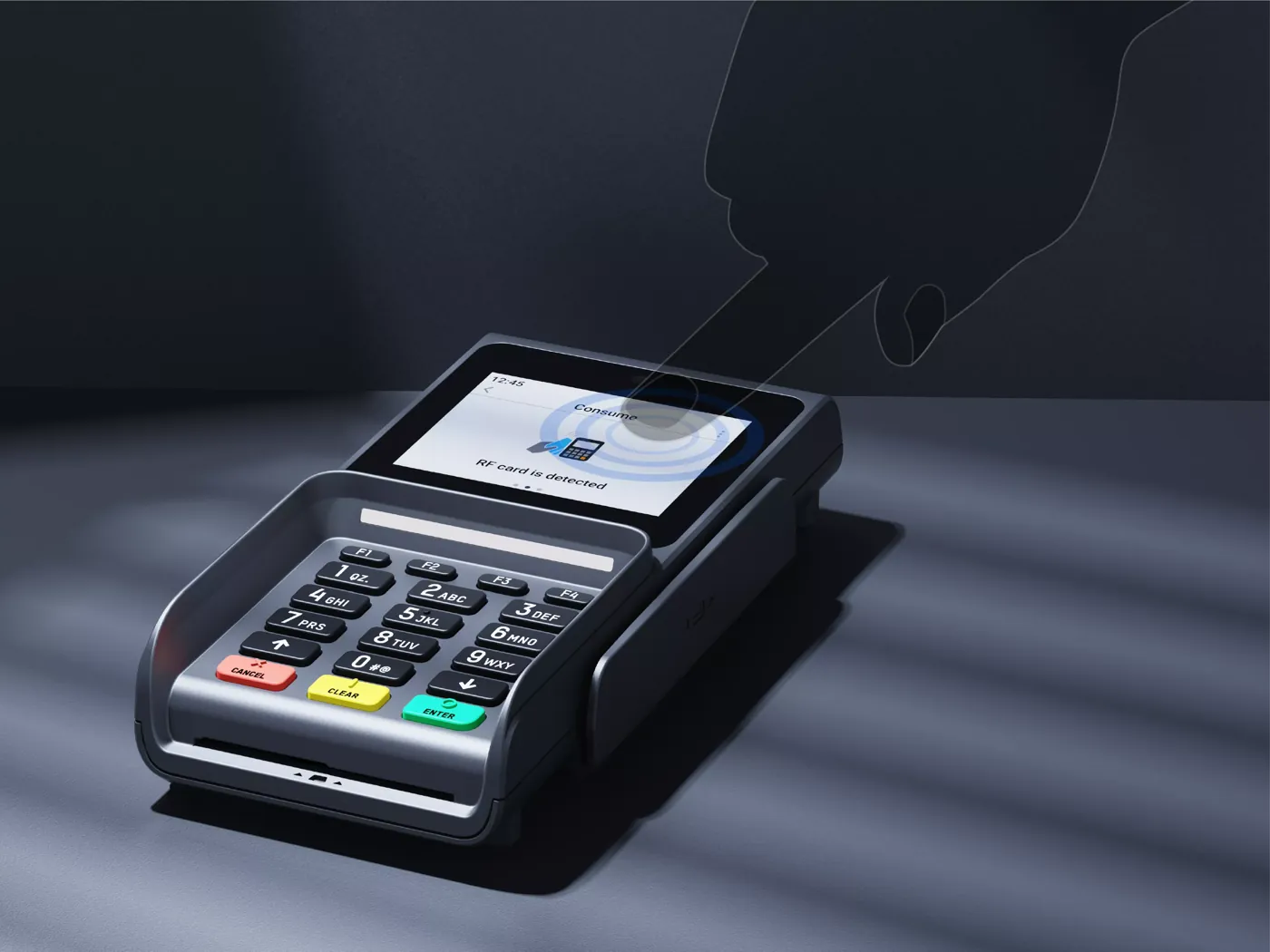

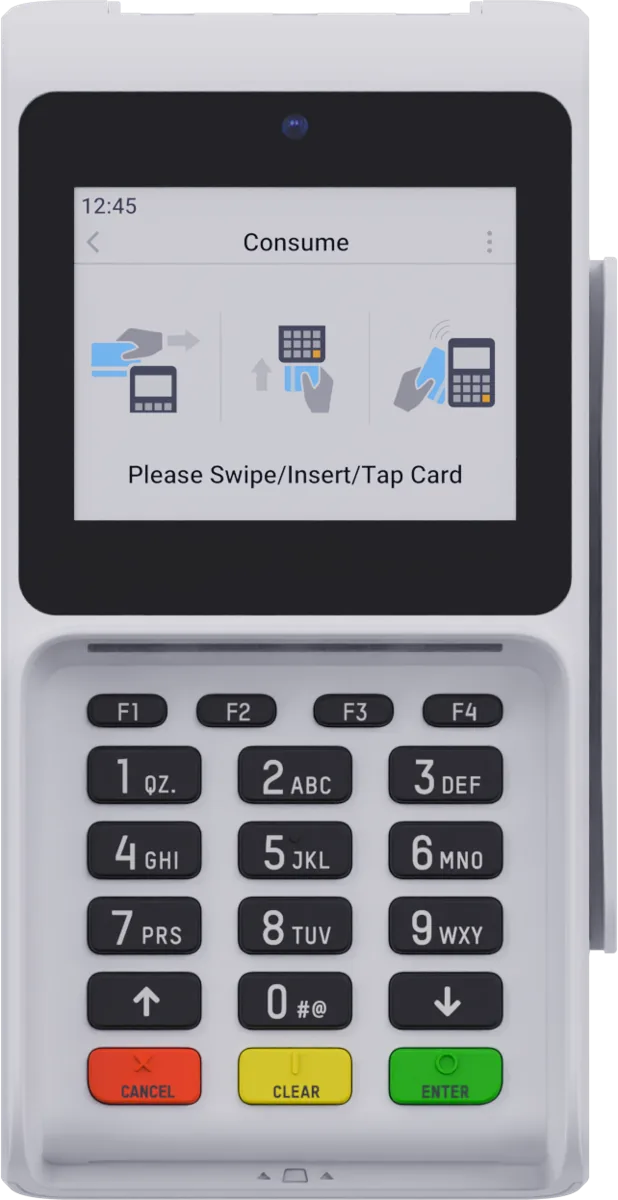

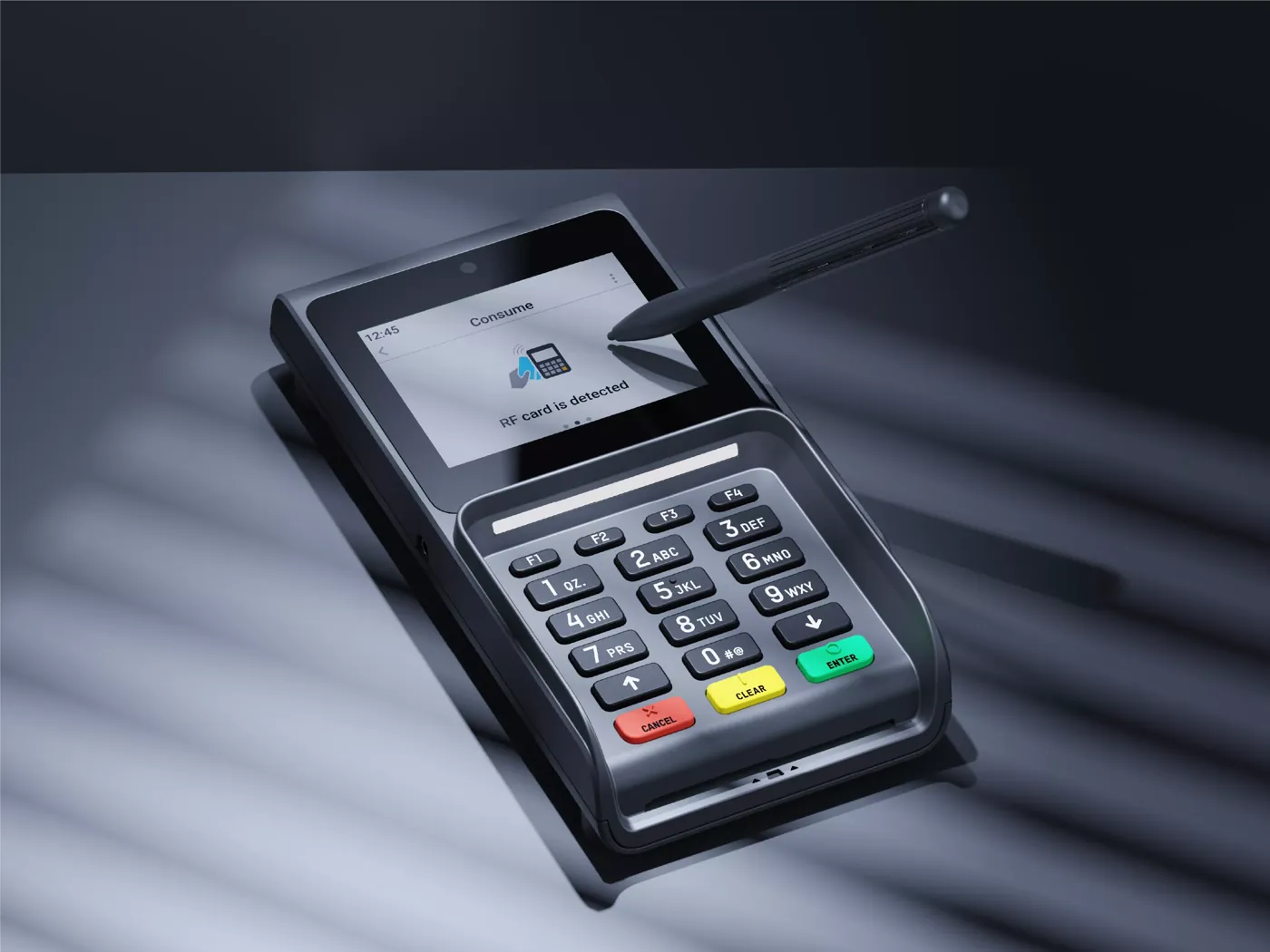

TP10 PIN pad
A PIN entry terminal for use with an existing cash register system.
PIN PAD · UNATTENDED · QR
PIN pads, unattended terminals and QR payments
An equipment range for integration with cash systems, automated points of sale and QR payments.
PRODUCTS
Models and configurations
T6U unattended POS
An embedded POS module for unattended use cases.

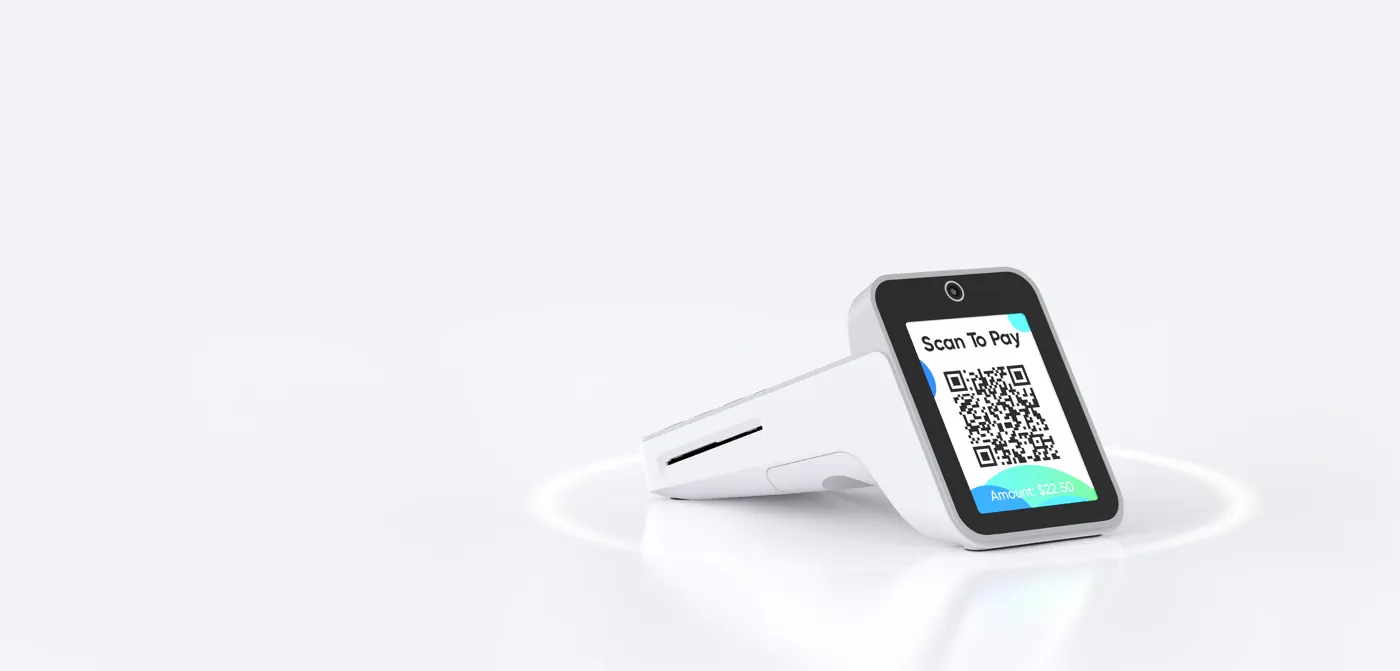

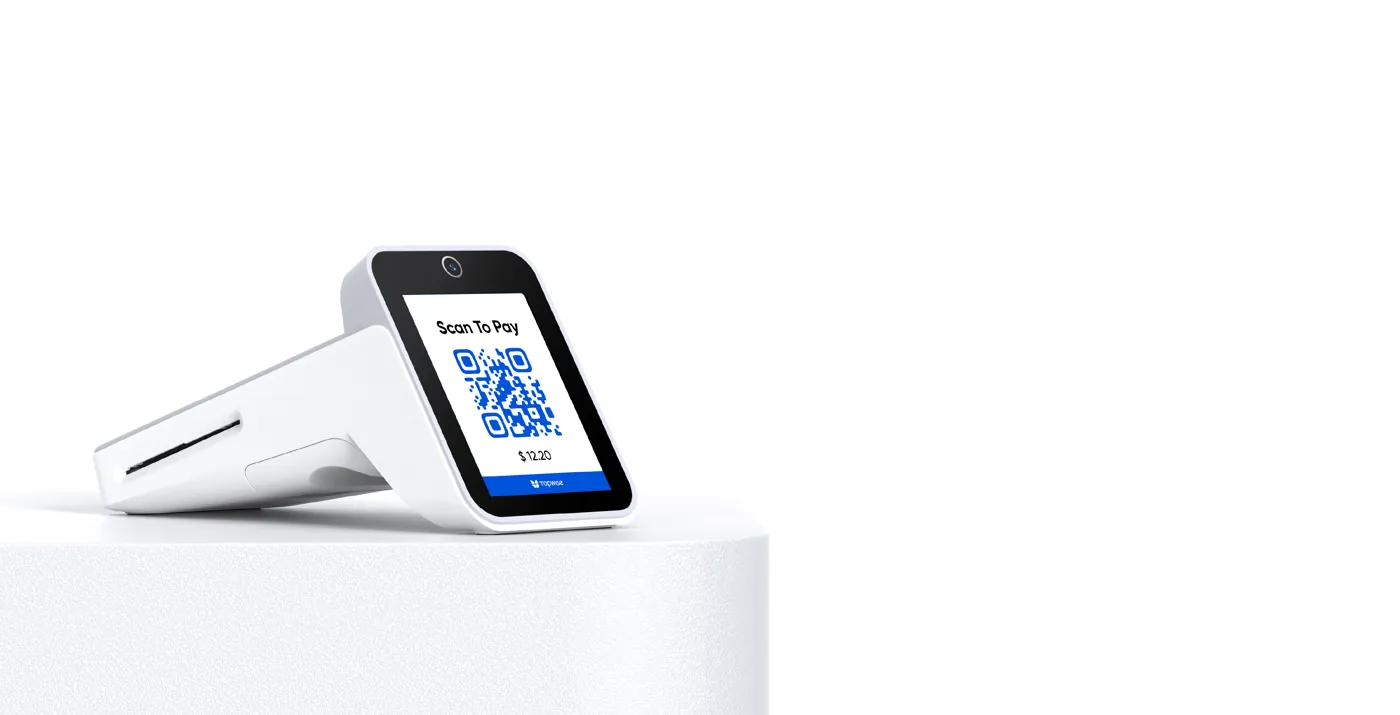

Q1 QR terminal
A compact terminal accepting QR and card payments.
mPOS and other specialized configurations are selected to meet project requirements. Models, configurations and availability are confirmed for each project.
GALLERY
A closer look
TECHNICAL SPECIFICATIONS
Specifications
| Operating system | RTOS |
|---|---|
| Processor | 32-bit RISC 204 MHz |
| Memory | 9 MB SRAM + 24 MB Flash |
| Display | 2.8" TFT 320×240, touch |
| Keypad | 10 numeric + 9 function |
| Card readers | Chip & PIN, NFC contactless, magstripe |
| Camera | 0.3 MP (optional) |
| Wireless | Wi-Fi 2.4/5 GHz (optional) |
| Card slots | PSAM ×1 |

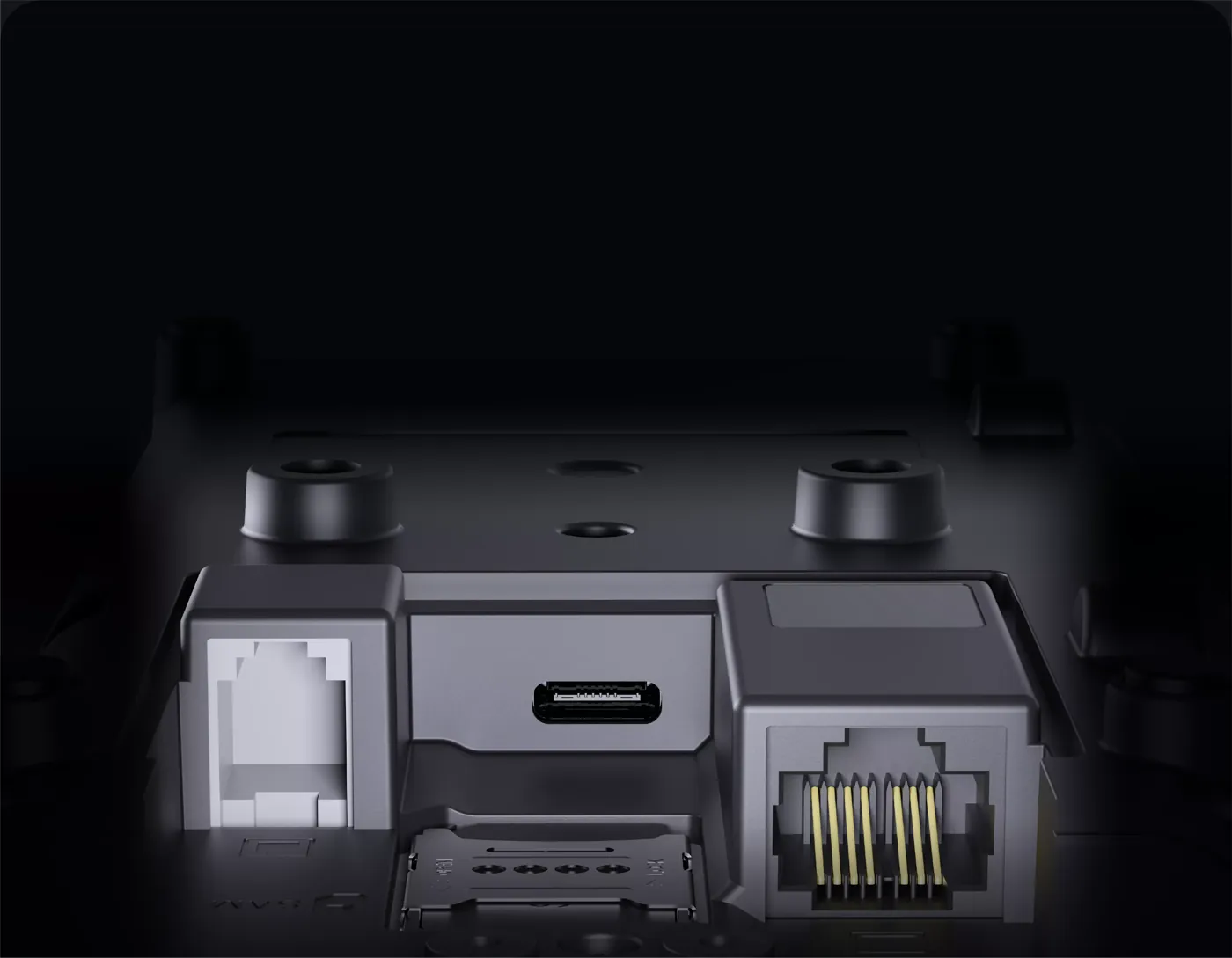

| Ports | Ethernet, RS232, USB; 2 m cable (data + power) |
| Audio | Speaker, buzzer |
| Dimensions and weight | 158.8 × 84 × 26.8 mm, 358 g |
| Operating temperature | -10 … +50 °C |
| Certifications | PCI PTS 6, EMV Contact L1/L2, EMV Contactless L1, Mastercard, Visa payWave, UnionPay, JCB, American Express, Discover D-PAS, CE, RoHS |
| Operating system | Web OS (RTOS) |
|---|---|
| Processor | Cortex-M3 360 MHz + Cortex-R5 614 MHz |
| Memory | RAM 9.25 + 16 MB, Flash 24 + 8 MB |
| Display | 2.4" TFT 320×240 |
| Customer display | 3.5" TFT 320×240 (optional) |
| Keypad | 10 numeric + 8 function |
| Card readers | Chip & PIN, NFC contactless, QR |
| Camera | 0.3 MP for QR (optional) |
| Mobile network | 4G (4G + 2G optional) |
| Wireless | Wi-Fi 2.4/5 GHz |
| Card slots | SIM ×1 + PSAM ×1 |
| Audio | 3 W speaker |
| Ports | USB-C |
| Battery | 2600 mAh, 5 V / 1 A |
| Dimensions and weight | 158.3 × 73 × 92.9 mm, 290 g |
| Operating temperature | -10 … +50 °C |
| Certifications | PCI PTS 7, EMV Contact L1/L2, EMV Contactless L1, Mastercard, Visa payWave, UnionPay, American Express, Discover D-PAS, CE, RoHS |
Source: official TOPWISE specifications. Configuration is confirmed per project.
